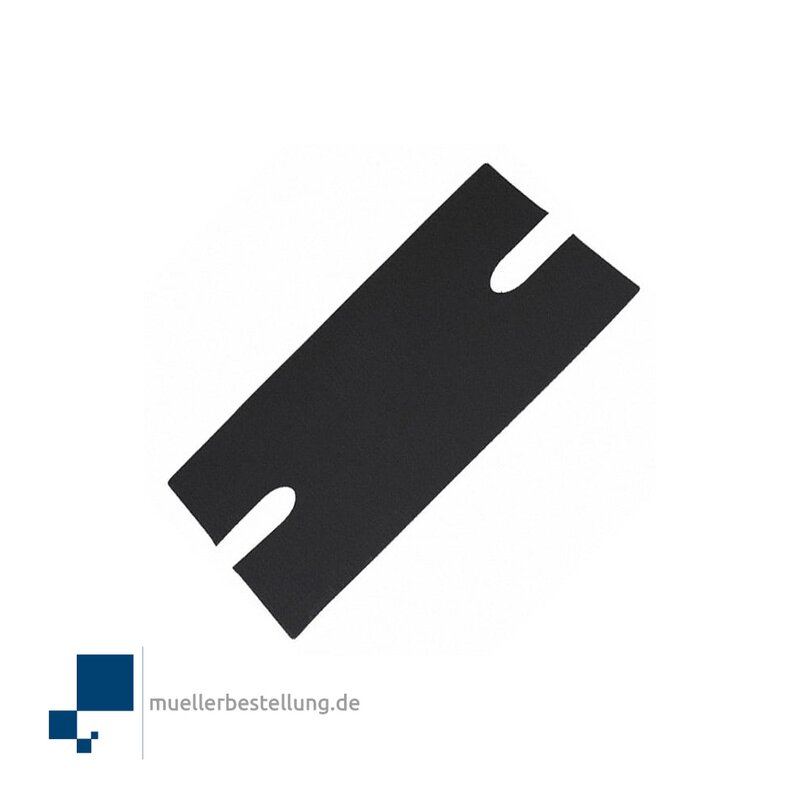

ber137-nd therm pad 63.50mmx50.8mm black

Item number: Q3-0.005-00-101

Category: Berquist Thermal conductive materials

21,75 €

including 19% VAT., plus shipping

Available now! (Shipping time: 3 - 4 workdays)
Description

BERGQUIST SIL PAD TSP Q2000

FEATURES AND BENEFITS

Thermal impedance: 0.35ºC-in2 /W @ 50 psi
Eliminates processing constraints typically associated with grease
Conforms to surface textures
Easy handling
May be installed prior to soldering and cleaning without worry

TYPICAL APPLICATIONS

Between a transistor and a heat sink
Between two large surfaces such as an L-bracket and the chassis of an assembly
Between a heat sink and a chassis
Under electrically isolated power modules or devices such as resistors, transformers and solid state relays

BERGQUIST SIL PAD TSP Q2000 eliminates problems associated with thermal grease such as contamination of electronic assemblies and reflow solder baths. BERGQUIST SIL PAD TSP Q2000 may be installed prior to soldering andcleaning without worry.

When clamped between two surfaces, the elastomer conformsto surface textures thereby creating an air-free interfacebetween heat-generating components and heat sinks. Fiberglass reinforcement enables BERGQUIST SIL PAD TSP Q2000 to withstand processing stresses without losing physical integrity. It also provides ease of handling during application.

TYPICAL PROPERTIES

Physical Properties

Hardness, Shore A, ASTM D2240 86
Flammability Rating, UL 94 V-0

Electrical Properties

Dielectric Breakdown Voltage , ASTM D149, Vac Non-Insulating
Dielectric Constant, ASTM D150 @ 1,000 Hz NA
Volume Resistivity, ASTM D257, ohm-meter 1×102

Thermal Properties

Thermal Conductivity , ASTM D5470, W/(m-K) 2.0
Thermal Performance vs. Pressure
TO-220 Thermal Performance, ºC/W
@ 10 psi 2.26
@ 25 psi 1.99
@ 50 psi 1.76
@ 100 psi 1.53
@ 200 psi 1.3
Thermal Impedance, ASTM D5470, ºC-in2/W (1)
@ 10 psi 0.65
@ 25 psi 0.48
@ 50 psi 0.35
@ 100 psi 0.24
@ 200 psi 0.16
