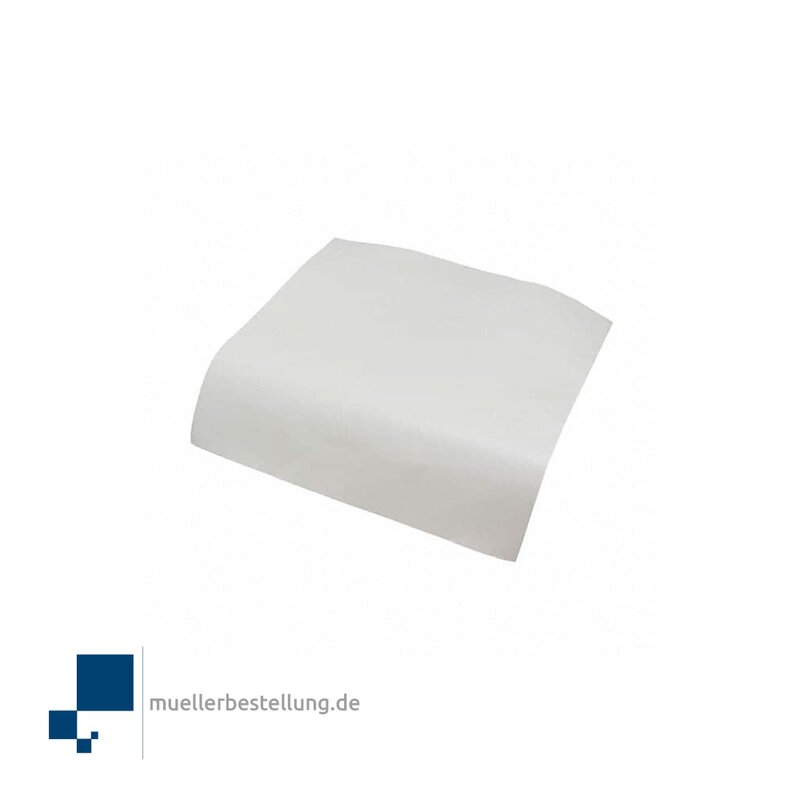

ber377-nd therm pad 304.8mmx304.8mm white

Item number: SP2000-0.015-00-1212

Category: Berquist Thermal conductive materials

231,78 €

including 19% VAT., plus shipping

Available now! (Shipping time: 3 - 4 workdays)
Description

BERGQUIST SIL PAD TSP 3500

FEATURES AND BENEFITS

- Thermal impedance: 0.33ºC-in2 /W @ 50 psi
- Optimal heat transfer
- High Thermal Conductivity: 3.5 W/m-K

TYPICAL APPLICATIONS

- Power supplies
- Motor controls
- Power semiconductors
- Aerospace
- Avionics

BERGQUIST SIL PAD TSP 3500 is a high performance, thermally conductive insulator designed for demanding aerospace and commercial applications. BERGQUIST SIL PAD TSP 3500 is a silicone elastomer formulated to maximizethe thermal and dielectric performance of the filler/binder matrix.

The result is a grease-free, conformable material capable of meeting or exceeding the thermal and electrical requirements of high reliability electronic packaging applications.

TYPICAL PROPERTIES

Physical Properties

Hardness, Shore A, ASTM D2240 90
Flammability Rating, UL 94 V-0

Electrical Properties

Dielectric Breakdown Voltage , ASTM D149, Vac 4,000
Dielectric Constant, ASTM D150 @ 1,000 Hz 4.0
Volume Resistivity, ASTM D257, ohm-meter 1×1011

Thermal Properties

Thermal Conductivity , ASTM D5470, W/(m-K) 3.5
Thermal Performance vs. Pressure
TO-220 Thermal Performance
@ 0.01"
@ 10 psi 2.61
@ 25 psi 2.32
@ 50 psi 2.02
@ 100 psi 1.65
@ 200 psi 1.37
Thermal Impedance
@ 0.01"
@ 10 psi 0.57
@ 25 psi 0.43
@ 50 psi 0.33
@ 100 psi 0.25
@ 200 psi 0.2
