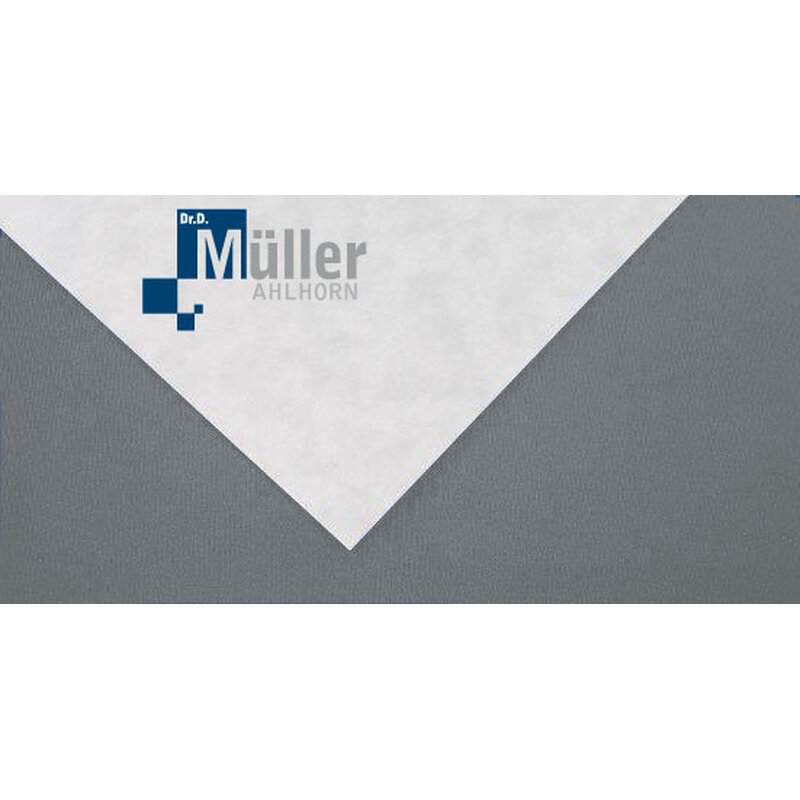

TufQuin TFT FI14130; 0,24 mm thick, 420 x 297 mm (5 pcs.)
Description
Cut from 3m™ TufQuin; 0.240 mm thick, approx 420 x 297 mm, the package contains 5 pcs. cut.
3m™ TufQuin tft 50 fi 14130 is a flexible laminate with very good dielectric stress and mechanical strength due to its structure of inorganic 3m TufQuin insulation paper and polyester film.
3m™ TufQuin tft 50 fi 14130 is halogen-free according to iec 61249-2-21 standard and certified for class n (200°c) according to ul®.
It offers excellent resistance to partial discharge damage, long-term high-temperature dielectric strength, mechanical strength and thermal conductivity, and good dielectric strength.
In addition, 3m™ TufQuin tft 50 fi 14130 has high moisture resistance and excellent absorption capacity for impregnating agents.
3m™ TufQuin tft 50 fi 14130 is used for example for motors, coils and electromagnets.
3m™ TufQuin tft 50 fi 14130 is suitable for use in electrical insulation systems (ice) according to ul® 1446 and iec 61857.
These papers are listed in the ul database under file number e65069 and e65007.
3m™ TufQuin tft 50 fi 14130 is supplied in a white colour as standard.
3m™ TufQuin tft is a registered trademark of 3m™ Co, USA
3m™ TufQuin tft 50 fi 14130 is a flexible laminate with very good dielectric stress and mechanical strength due to its structure of inorganic 3m TufQuin insulation paper and polyester film.
3m™ TufQuin tft 50 fi 14130 is halogen-free according to iec 61249-2-21 standard and certified for class n (200°c) according to ul®.
It offers excellent resistance to partial discharge damage, long-term high-temperature dielectric strength, mechanical strength and thermal conductivity, and good dielectric strength.
In addition, 3m™ TufQuin tft 50 fi 14130 has high moisture resistance and excellent absorption capacity for impregnating agents.
3m™ TufQuin tft 50 fi 14130 is used for example for motors, coils and electromagnets.
3m™ TufQuin tft 50 fi 14130 is suitable for use in electrical insulation systems (ice) according to ul® 1446 and iec 61857.
These papers are listed in the ul database under file number e65069 and e65007.
3m™ TufQuin tft 50 fi 14130 is supplied in a white colour as standard.
3m™ TufQuin tft is a registered trademark of 3m™ Co, USA
Characteristics
Marke:
TufQuin
