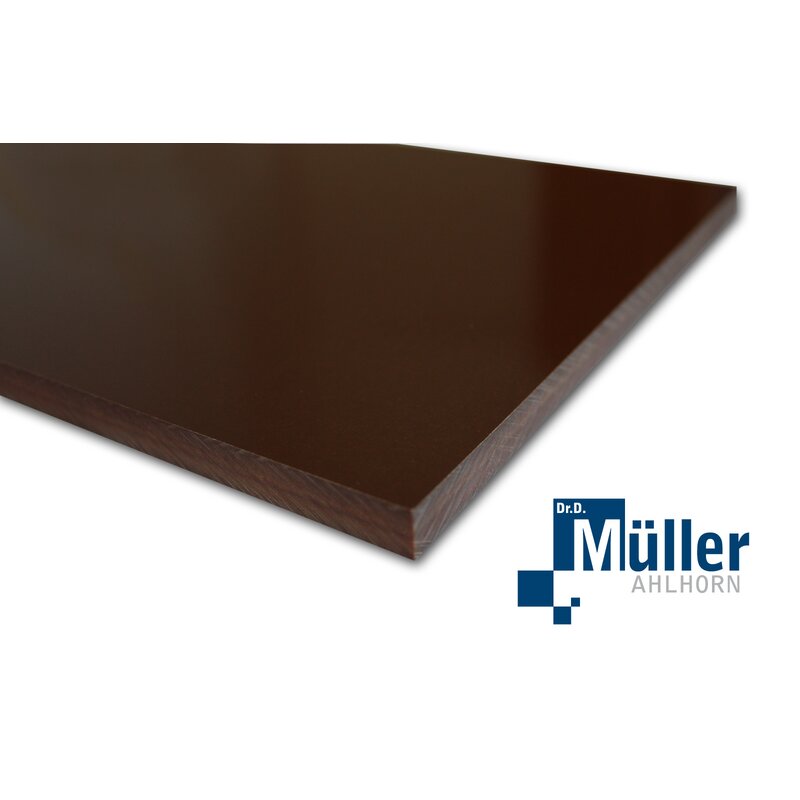

Rigidiso RI 40100 Phenol Cotton hard fabric (900 x 900 x 25 mm) PF CC 201 HGW 2082

Item number: 0250-Z40100-0900-0900

EAN: 4251406240088

Category: Cotton hard fabric cuttings

  • panel laminate made of phenolic-cotton hard fabric
  • corresponds to the standard types: iec 60893 (d) pf cc 201; din 7735 (d) hgw 2082
  • very good insulating properties up to insulation class e (110°c)
  • it also has very good mechanical properties
  • is used as a construction material with higher demands on the insulation properties.
Show description
325,88 €

including 19% VAT., plus shipping

Available now! (Shipping time: 3 - 4 workdays)
Description
Rigidiso ri 40100 is a board laminate made of phenolic cotton hard fabric and is of the standard types: iec 60893 (d) pf cc 201; din 7735 (d) hgw 2082; bs (gb) 2572-f3 nema l1 (usa) c nf c26 (f) 150c vsm (cH) S-pf-cc 1 mil SPec 24768/16.
Rigidiso ri 40100 has very good insulating properties up to insulation class e (110°c), and also has very good mechanical properties.
Furthermore, Rigidiso ri 40100 is environmentally neutral, free of asbestos, dioxin, cadmium and halogen compounds.
Rigidiso ri 40100 is used as a construction material with higher demands on insulation properties.
For example, the tracking resistance of Rigidiso ri 40100 can be improved to over 600 with the aid of a special varnish.
Rigidiso ri 40100 is available in a brown colour.

Rigidiso is a registered trademark of Dr Dietrich Müller GmbH, Germany.
Other dimensions available on request.
On request we can also supply individual cuts or
components manufactured on our cNc-milling machines.

Rigidiso ri 40100 is a laminate made of phenolic-cotton and conforms to the following standards
iec 60893 (d) pf cc 201; din 7735 (d) hgw 2082; bs (gb) 2572-f3 nema l1 (usa) c nf c26 (f) 150c vsm (cH) S-pf-cc 1 mil SPec 24768/16.
Rigidiso ri 40100 is insulating up to insulation class e (120°c), furthermore it has very good mechanical properties. In addition to that it is environmentally neutral, free of asbestos, dioxin, cadmium and halogen.
Rigidiso ri 40100 is used as construction material with higher requirements to the insulation properties.
Rigidiso ri 40100 is delivered in a brown colour.
Rigidiso ri 40100 is durable unlimited under normal conditions (20°c, 50% rel. air humidity).
Rigidiso® is a registered trademark of the company Dr. Dietrich Müller GmbH, Germany


Characteristics
Marke:
Pertinax
