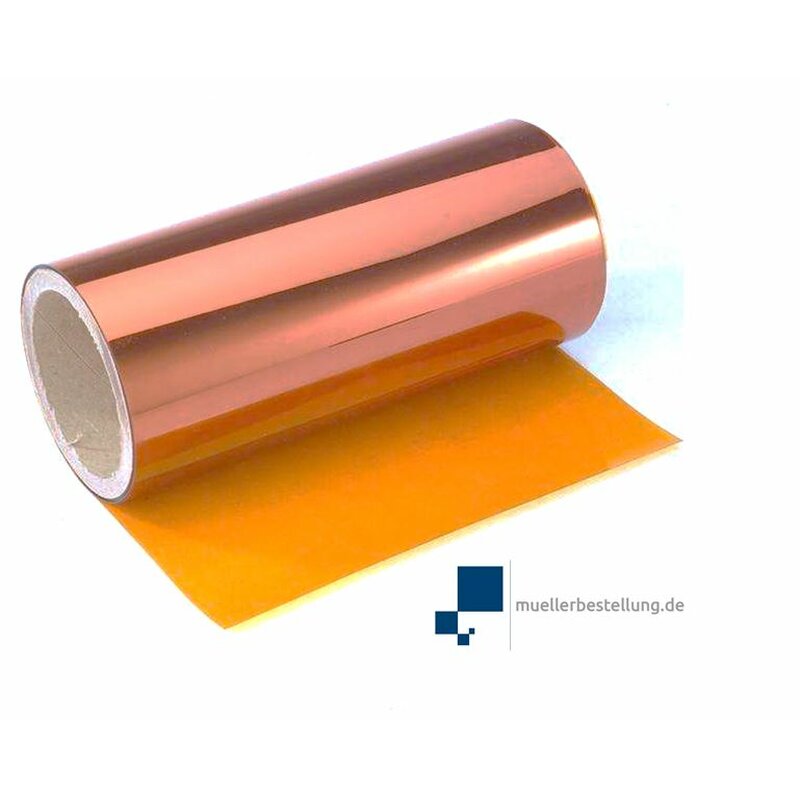

Polyimide Film - strength 0,125 mm, width: 910 mm, length: 10 meter
Description
Polyimide film - cut lengths
Roll width: 910 mm (tolerance +/- 20 mm), thickness and length selectable
Available thickness: 0.025 mm, 0.050 mm, 0.075 mm, 0.125 mm, 0.250 mm
Property:
High strength polyimide film with excellent physical, chemical and electrical properties over a very wide temperature range. The heat-resistant film can be used for short periods of time in a temperature range from -269°c to +400°c. Due to the smooth surface, without pinholes, without bubbles, it offers good resistance at high and low temperatures.
Application
Polyimide is used as insulation material for conductors and cables, for the insulation of windings, magnetic coils and transformers or similar applications. Customers can use the film to wind electrical insulation, copper wires and rods.
Shipping:
Shipment takes place as running yard ware on roll.
Other formats, cuts, stampings or shaped parts can be produced on special request.
