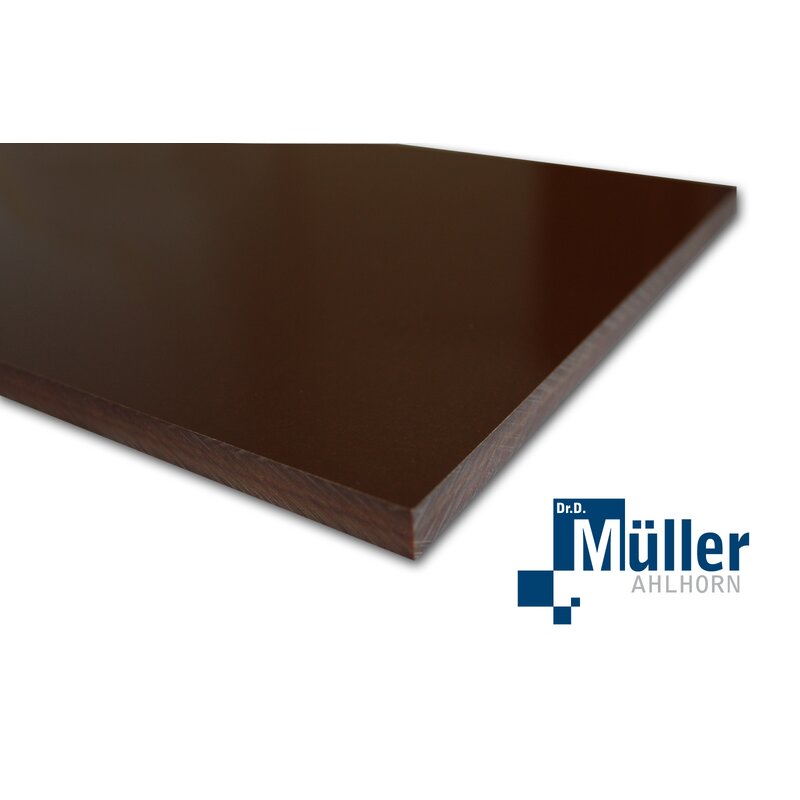

Pertinax RI 40000 (hard paper) - 800 x 800 x 7 mm)PF CP 201 HP 2061

Pertinax ri 40000 is a phenolic resin and paper sheet laminate and meets the following standards
iec 60893 pf cp 201; din 7735 hp 2061.
Pertinax ri 40000 is a very good insulating material up to insulation class e (120°c), and also meets very good mechanical properties.
In addition to that it is environmentally neutral, free of asbestos, dioxin, cadmium and halogen.
Pertinax ri 40000 is used when good mechanical and electrical properties are required in the low voltage range, including laboratory benches, front panels indoors and base plates for switchgear.
Pertinax ri 40000 is supplied in a brown colour.
Pertinax is a registered trademark of Dr Dietrich Müller GmbH, Germany.
Other dimensions available on request.
On request, we can also supply individual cuts or components manufactured on our CNC milling machines.

Pertinax ri 40000 is a manufactered phenolic resin and paper sheet laminate and meets the following standards
iec 60893 pf cp 201; din 7735 hp 2061.
Pertinax ri 40000 is insulating up insulation class e (120°c), furthermore it has very good mechanical properties.
In addition to that it is environmentally neutral, free of asbestos, dioxin, cadmium and halogen.
Pertinax ri 40000 is used whenever good mechanical and electrical properties in the low voltage range are required, that means for example for laboratory benches, frontal covering in the inner area and basic plates for control units.
Pertinax is a registered trademark of the company Dr. Dietrich Müller GmbH, Germany
