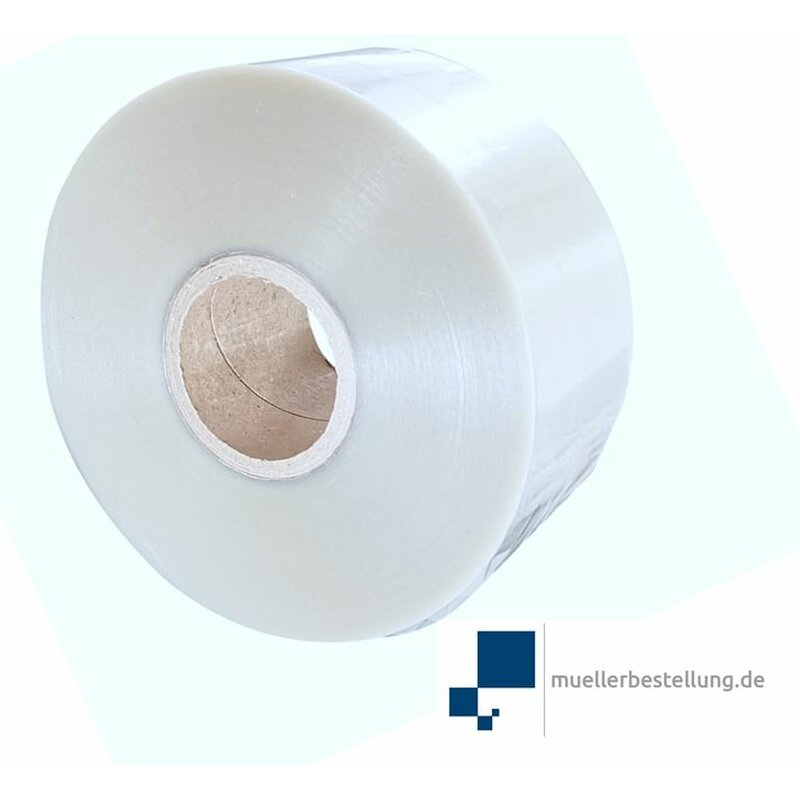

Mylar A - Polyester film - strength: 0,350 mm, width: 925 mm, length: 1 meter
Description
Mylar a - polyester film - length sections
Roll width: 1000 mm (tolerance +/- 10 mm), thickness and length selectable
Available thickness: 0.023 mm, 0.036 mm, 0.050 mm, 0.075 mm, 0.100 mm, 0.125 mm, 0.190 mm, 0.250 mm, 0.350 mm
construction:
Mylar a is an electrical insulating film made of polyethylene terephthalate and is used as a surface insulating material up to and including insulation class b (130°c).
Property:
Mylar a is tensile and tear resistant, dimensionally stable and shows excellent electrical properties.
The material has good heat and cold resistance to the most common solvents.
application
Mylar a is used as interlayer and cover layer insulation in transformers, chokes and relay coils.
Mylar a is also used as groove and phase insulation, as cover slider and sleeve, as insulating layer in electrical devices and as carrier material for electrical insulation tapes.
It is also used in the production of stencils. Excellent for airbrushing.
Shipping:
The dispatch takes place as running yard ware on roll.
Other formats, cuts, stampings or shaped parts can be produced on special request.
Roll width: 1000 mm (tolerance +/- 10 mm), thickness and length selectable
Available thickness: 0.023 mm, 0.036 mm, 0.050 mm, 0.075 mm, 0.100 mm, 0.125 mm, 0.190 mm, 0.250 mm, 0.350 mm
construction:
Mylar a is an electrical insulating film made of polyethylene terephthalate and is used as a surface insulating material up to and including insulation class b (130°c).
Property:
Mylar a is tensile and tear resistant, dimensionally stable and shows excellent electrical properties.
The material has good heat and cold resistance to the most common solvents.
application
Mylar a is used as interlayer and cover layer insulation in transformers, chokes and relay coils.
Mylar a is also used as groove and phase insulation, as cover slider and sleeve, as insulating layer in electrical devices and as carrier material for electrical insulation tapes.
It is also used in the production of stencils. Excellent for airbrushing.
Shipping:
The dispatch takes place as running yard ware on roll.
Other formats, cuts, stampings or shaped parts can be produced on special request.
